20-channel Miniature Through Bore Slip Ring with 0.53inch Bore and IP51 Protection

Product Categories

Shenzhen Panlink Electronic Technology Co.,Ltd.

Contact Now

Name: 20channel Miniature Through Bore Slip Ring with 053inch Bore and IP51 Protection
Brand: Panlink
Price: 1 USD

Brand Name : Panlink

Model Number : PSR-F11-6P14S

Certification : ISO 9001: 2015, CE

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T

Supply Ability : 40 Million a Year

Delivery Time : 4 Weeks

Packaging Details : Carton Box, EPE Foam, Wooden Box(For Large Goods)

Channels : (14×)Signal, (6×)Power

Voltage Rating : 28VDC

Rotating Speed : 50rpm

Protection Degree : IP51(higher or lower on request)

Contact Now

20-channel Miniature Through Bore 0.53inch Bore

PSR-F11-6P14S

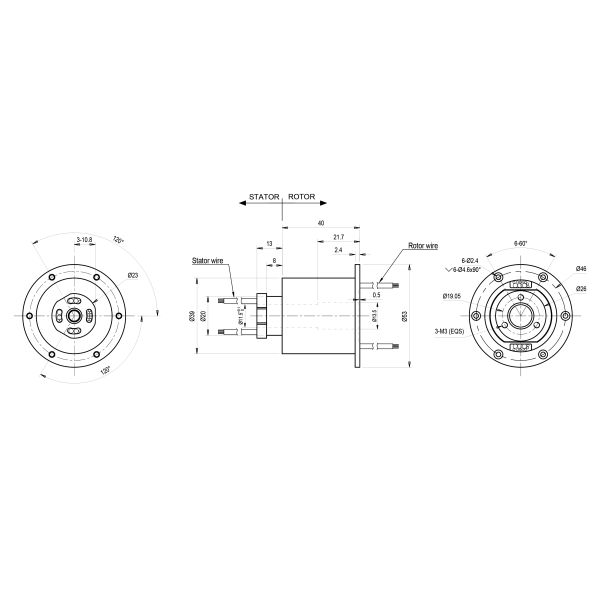

Drawing (Dimensions in Millimeters)

Specification:

Channels	14 for Signal Transmission, 6 for Power Transmission
Electrical Specifications
Voltage Rating	28VDC
Current Rating	Power: 15A, Signal: 2A
Insulation Resistance	Max 500MΩ @ 500VDC
Dielectric Noise	500VAC @ 50Hz, 60s
Electric Noise	Max 40mΩ
Lead Cable	Power: AWG16 Teflon, Signal: AWG24 Teflon
Mechanical Specifications
Working Life	10 million revolutions
Rotating Speed	50rpm
Operating Temperature	-40℉ to +122℉ (-40℃ to +50℃)
Storage Temperature	-67℉ to +158℉ (-55℃ to +70℃)
Operating Humidity	0~95%RH
Torque	0.5N•m
Contact Material	Precious Metal
Housing Material	Aluminum Alloy
Protection Degree	IP51(higher or lower on request)
Weight	120g
Shock	GB/T 2423.5 (IEC 60068-2-27)
Vibration	GB/T 2423.10 (IEC 60068-2-6)

Product Tags:

20-channel through bore slip ring
